• Country
• Japan

• Manufacturer / Brand
• Luxman, Lux Corp.; Kinsuido of Osaka

• Year
• 1978 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 153505

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 120 or 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org

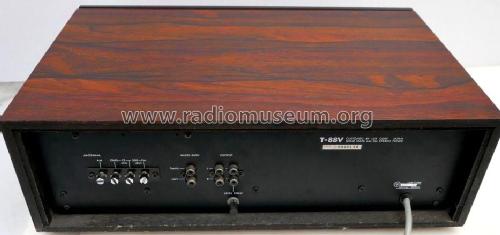

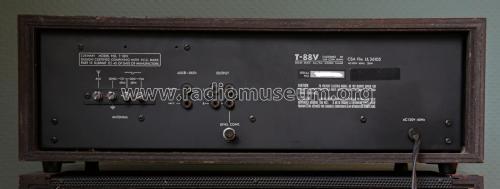

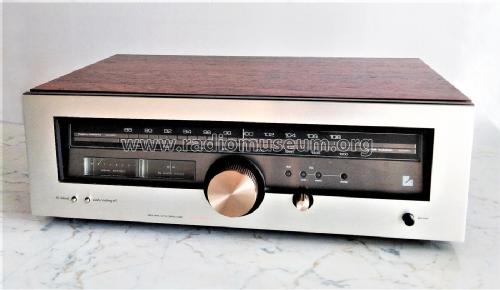

• Model: T-88V - Luxman, Lux Corp.; Kinsuido of

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 450 x 160 x 300 mm / 17.7 x 6.3 x 11.8 inch

• Notes
• AM/FM-Tuner, 4-fach Abstimmkondensator, Muting, Höhenfilter, Feldstärke- und Ratio-Mitte-Anzeige.

• Net weight (2.2 lb = 1 kg)
• 7 kg / 15 lb 6.7 oz (15.419 lb)

• Source of data

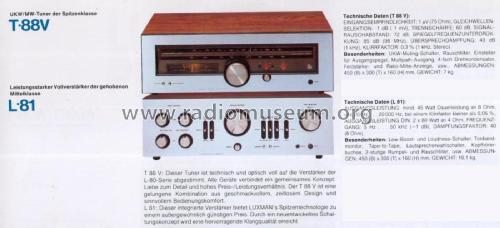

• -- Original prospect or advert

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
