• Country
• Japan

• Manufacturer / Brand
• Luxman, Lux Corp.; Kinsuido of Osaka

• Year
• 1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 163223

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• 6CW4 6CW4 6CW4 6DT8 6DT8 6DT8 6U8 6U8 6AU6 6AU6 6AU6 6BD6 6BD6 6BE6 12AX7 12AU7

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org

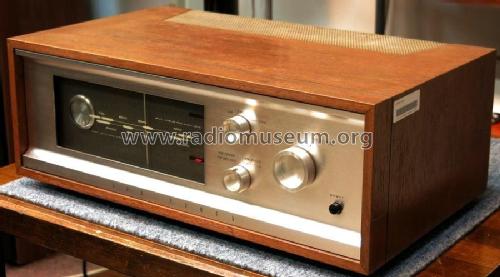

• Model: WZ30 - Luxman, Lux Corp.; Kinsuido of

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 470 x 175 x 275 mm / 18.5 x 6.9 x 10.8 inch

• Notes
• AM/FM Stereo Tuner.
  18 Tubes, 12 Diodes.

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
