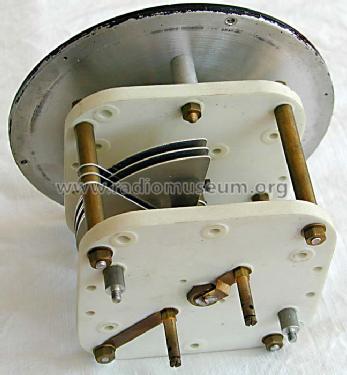

Präzisions-Drehkondensator 510/73
Luxor (Marke), Max Ulrich, Elektrowerkstatt Zwenkau; Leipzig
- Country
- Germany
- Manufacturer / Brand
- Luxor (Marke), Max Ulrich, Elektrowerkstatt Zwenkau; Leipzig
- Year
- 1955 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 115613
-
- alternative name: Arndt G. || Elektrow. Zwenkau GmbH
- Brand: Ulrich; Zwenkau/Leipzig
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Präzisions-Drehkondensator 510/73 - Luxor Marke, Max Ulrich,
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 145 x 145 x 140 mm / 5.7 x 5.7 x 5.5 inch
- Notes
- Mess-Drehkondensator 10···100 pF; Grob- und Feintrieb mit Noniuszeiger. Anschlüsse über Schraubklemmen.
- Net weight (2.2 lb = 1 kg)
- 1.1 kg / 2 lb 6.8 oz (2.423 lb)
- Author
- Model page created by a member from D. See "Data change" for further contributors.
