Manta 2272
MABA Gebr. Marbach , Frankfurt / Main
- Country
- Germany
- Manufacturer / Brand
- MABA Gebr. Marbach , Frankfurt / Main
- Year
- 1970 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 189746
- Number of Transistors
- 10
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / 220 / 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 0.5 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Manta 2272 - MABA Gebr. Marbach , Frankfurt
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 240 x 150 x 80 mm / 9.4 x 5.9 x 3.1 inch
- Notes

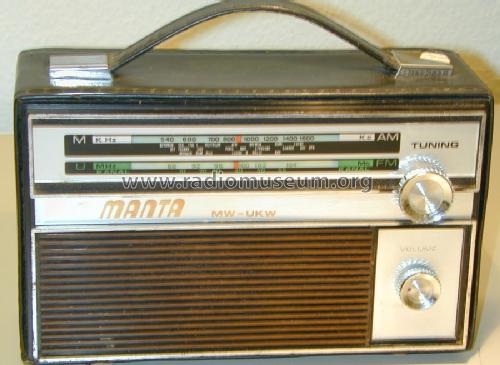

- Manta 2272 AM/FM AC/DC portable radio with leatherette cabinet
and wood-grain speaker grill.
- Net weight (2.2 lb = 1 kg)
- 1.070 kg / 2 lb 5.7 oz (2.357 lb)
- Author
- Model page created by Eckhard Wegner. See "Data change" for further contributors.
