• Country
• United States of America (USA)

• Manufacturer / Brand
• Mackay Radio & Telegraph Company; New York

• Year
• 1968

• Category
• Commercial Receiver (may include amateur bands)

• Radiomuseum.org ID
• 119786

• • alternative name: ITT Mackay Marine

• Number of Tubes
• 17

• Valves / Tubes
• 7788 6C4 6688 6BL8 6BE6 6BA6 6BA6 6AV6 12AT7 6BF5 6BL8 6U8 6EW6 6BA6 6BA6 6AU6 0B2

• Main principle
• Superhet, double/triple conversion; ZF/IF 455 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

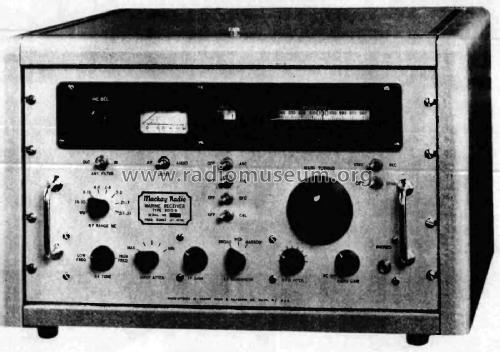

• Model: 3010-C - Mackay Radio & Telegraph

• Shape
• Boatanchor (heavy military or commercial set >20 kg).

• Dimensions (WHD)
• 19 x 10.5 x 16 inch / 483 x 267 x 406 mm

• Notes
• Coverage (10 kHz)70 kHz to 30 MHz in 15 bands, works in AM, CW, MCW, SSB and FSK, S-meter, BFO, triple conversion ~38 MHz, 5,94 MHz and 455 kHz, 90 inch film scale, differences to the type B are just added capacitors to improve the frequency stability.

• Source of data
• -- Collector info (Sammler)

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by a member from A. See "Data change" for further contributors.
