• Country
• United States of America (USA)

• Manufacturer / Brand
• Macy's, R.H. Macy & Co.; New York, NY

• Year
• 1952 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 355853

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• 6J6 6J6 6BC5 or 6AG5 6CB6 6CB6 6CB6 6BN6 25L6GT 12AU7 12AU7 25L6GT 6AL5 6SN7GT 25BQ6GT 25W4GT 1B3GT 17BP4

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Hyde Park 1001 - Macy's, R.H. Macy & Co.; New

• Shape
• Tablemodel, with any shape - general.

• Notes

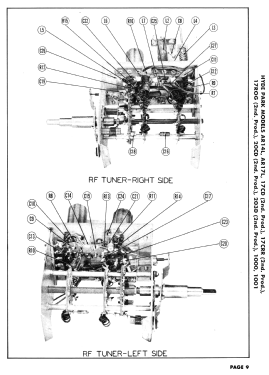

• Hyde Park model 1001 is a 17” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with a VHF tuner and picture tube 17BP4. Speaker not specified. 2X selenium rectifier.



• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 169, folder 11, dated 6-52)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
