• Country
• United States of America (USA)

• Manufacturer / Brand
• Madison Fielding Corp., Brooklyn

• Year
• 1958 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 158226

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 13

• Valves / Tubes
• 7025 7025 7025 7025 6AF6G 7025 7025 7025 EL84 EL84 EL84 EL84 GZ34

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 40 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: 320 - Madison Fielding Corp.,

• Shape
• Chassis only or for «building in»

• Notes

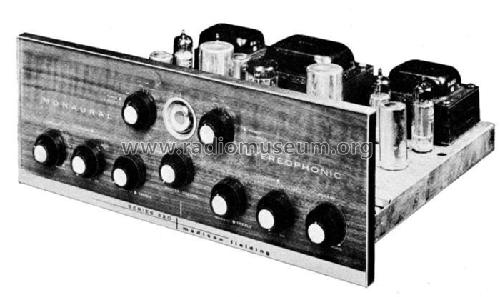

• The Madison Fielding Model 320 is an AC operated 13 Tube Stereo Amplifier.

  40 Watt Stereophonic amplifier
  Dual Magic Eye
