• Country
• Finland

• Manufacturer / Brand
• Maestro, Turku

• Year
• 1960 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 264703

• Number of Tubes
• 20

• Valves / Tubes
• PCF82 PCC88 EF80 EF80 EF80 EF80 PCF82 ECH81 EBF89 PCL84 PCF80 PCF82 PCL86 ECC82 PCL85 PCF80 PY88 PL36 DY87 AW59-91

• Conflicting model year with tube data.
• The model date contradicts tube dates. [ PCL85 (1961)]

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• -Loudspeaker incorporated, but system not known.

• Material
• Wooden case

• from Radiomuseum.org

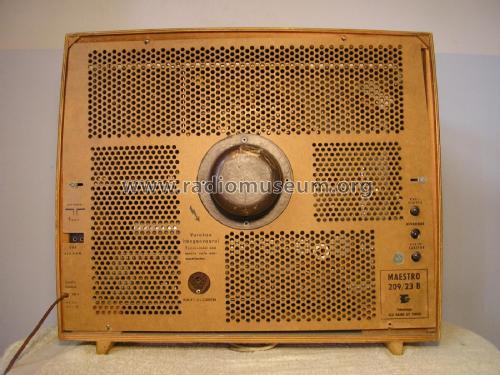

• Model: 209/23B - Maestro, Turku

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 590 x 505 x 365 mm / 23.2 x 19.9 x 14.4 inch

• Notes

• Chassis made by ASA RADIO OY Turku

• Author
• Model page created by Timo Rantasaari. See "Data change" for further contributors.

• Other Models

• Here you find 46 models, 24 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
