Magestico (Magnedine, Radio Pujals); Barcelona

Data
Forum
Pictures
Collections

  • Year
  • 1947
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 117148

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 490 kHz; 2 AF stage(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 125 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • from Radiomuseum.org
  • Model: 110 - Magestico Magnedine, Radio
  • Literature/Schematics (1)
  • -- Schematic
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.

 Collections | Museums | Literature

Collections

The model is part of the collections of the following members.

 Forum

Forum contributions about this model: Magestico Magnedine,: 110

Threads: 1 | Posts: 1

hello,

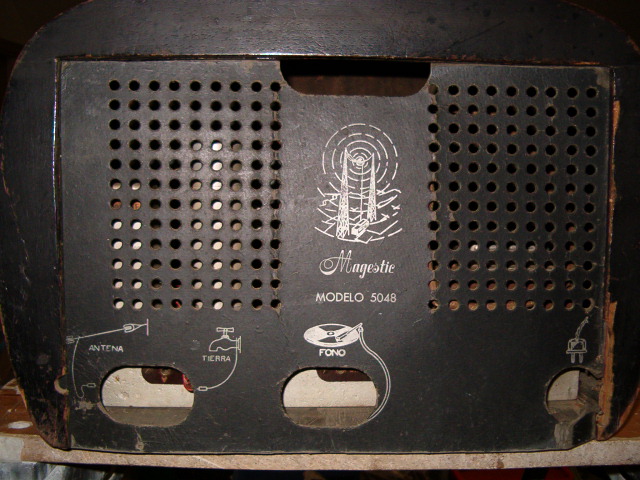

I repaired a Spanish radio, a Magestico, the brand from radio Pujals in Barcelona. I got the schematic of a model 110. The schematic fits with the receiver on my table. I think the back is not the original one. It doesn't match the housing and the entries.

Please can someone tell me if this radio is a model 110. If not can you tell me the model number.

Cordially,

Eduard Hontele
