• Country
• Spain

• Manufacturer / Brand
• Magestico (Magnedine, Radio Pujals); Barcelona

• Year
• 1948 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 229707

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH42 UAF42 UAF42 UL41 UY41

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 110; 125; 150 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org

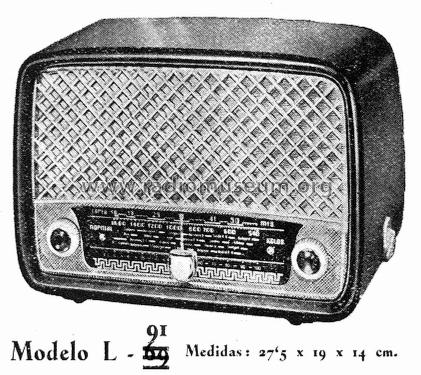

• Model: L-91 Ch=157 [Marrón] - Magestico Magnedine, Radio

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes

• Existen dos cajas, color Marrón y color Blanco/Gris ambas con el chasis/esquema 157

  Precio en forma de kit: 1.040 pts, totalmente montada y ajustada: 1.173,35 pts.

• Price in first year of sale
• 1,173.35 ESP

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
