- Country
- United States of America (USA)
- Manufacturer / Brand
- Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
- Year
- 1959
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 151455
Sams Photofact Folders

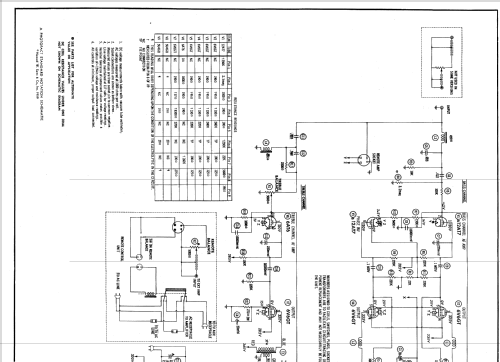

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: AMP-179-10 - Magnavox Co., Commercial
- Shape
- Chassis only or for «building in»
- Notes
- The Magnavox Chassis AMP-179-10 is an AC operated 9 Tube Bass-Treble Audio Amplifier.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 10-59, Set 459, Folder 7)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
