- Country
- Italy
- Manufacturer / Brand
- Magnadyne Radio; Torino
- Year
- 1956/1957 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 352249

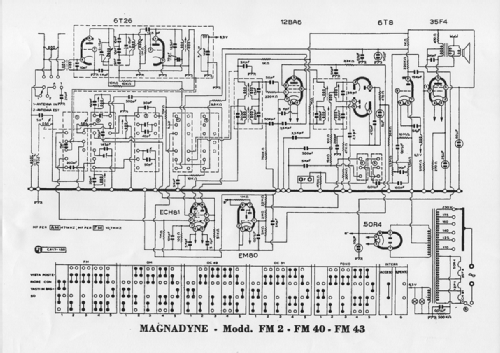

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 471/10700 kHz; 2 AF stage(s)
- Wave bands
- Broadcast, 2 Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 140; 160; 175; 230 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: FM2 - Magnadyne Radio; Torino
- Shape
- Tablemodel with Push Buttons.
- Author
- Model page created by Remo Del Cortona. See "Data change" for further contributors.
