• Country
• Italy

• Manufacturer / Brand
• Magnadyne Radio; Torino

• Year
• 1931/1932

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 161345

• Number of Tubes
• 3

• Valves / Tubes
• E442 B443 505

• Main principle
• TRF with regeneration

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 125-160 Volt

• Loudspeaker
• Magnetic loudspeaker (reed) generic. / Ø 26 cm = 10.2 inch

• Power out
• 1.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

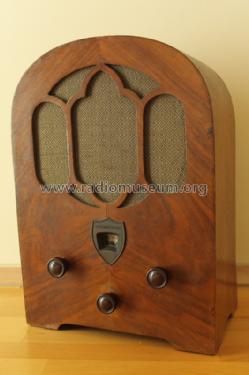

• Model: M3 - Magnadyne Radio; Torino

• Shape
• Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).

• Dimensions (WHD)
• 260 x 320 x 150 mm / 10.2 x 12.6 x 5.9 inch

• Notes
• Ricevitore molto simile al modello M30, con cui condivide la parte elettronica installata tuttavia in un mobile di foggia differente.

• Net weight (2.2 lb = 1 kg)
• 3.4 kg / 7 lb 7.8 oz (7.489 lb)

• Source of data
• Guida Pratica Antique Radio V (2003)

• Author
• Model page created by Antonio Siciliano. See "Data change" for further contributors.
