- Country
- Italy
- Manufacturer / Brand
- Magnadyne Radio; Torino
- Year
- 1934 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 207716
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); Reflex
- Tuned circuits
- 9 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 110-220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org

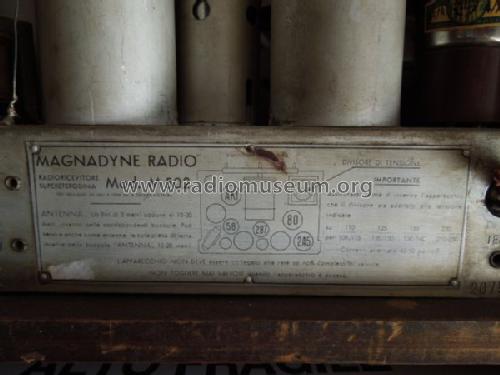

- Model: M502 - Magnadyne Radio; Torino
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 400 x 420 x 310 mm / 15.7 x 16.5 x 12.2 inch
- Notes
- Schema e chassis identico al modello M505.
- Author
- Model page created by Pasquale Baiocato. See "Data change" for further contributors.
- Other Models
-
Here you find 355 models, 274 with images and 256 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Magnadyne Radio; Torino
