MD6001
Magnadyne Radio; Torino
- Country
- Italy
- Manufacturer / Brand
- Magnadyne Radio; Torino
- Year
- 1960 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 121167
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 125-220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Bakelite case
- from Radiomuseum.org

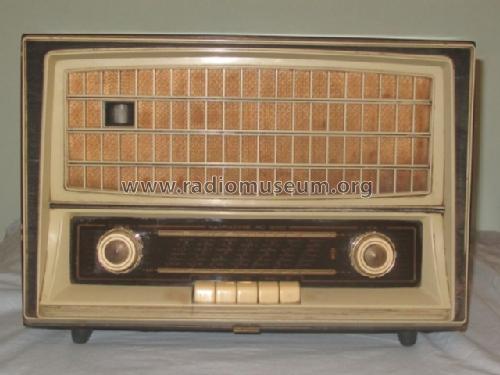

- Model: MD6001 - Magnadyne Radio; Torino
- Notes
- Alimentazione con autotrasformatore.
- Source of data
- -- Collector info (Sammler)
- Author
- Model page created by Matteo Vannini. See "Data change" for further contributors.
