• Country
• Italy

• Manufacturer / Brand
• Magnadyne Radio; Torino

• Year
• 1950/1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 99348

Click on the schematic thumbnail to request the schematic as a free document.

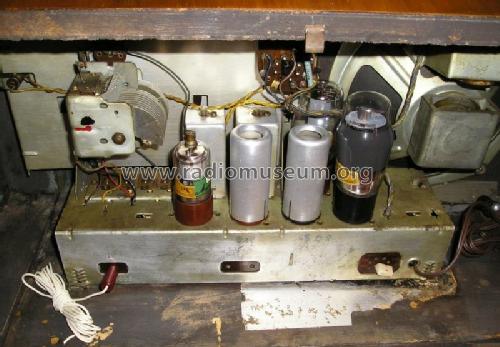

• Number of Tubes
• 6

• Valves / Tubes
• 6TE8 6SK7 6SQ7 6V6GT 6E5 5Y3GR

• Main principle
• Superheterodyne (common); ZF/IF 471 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 175; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 3.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: S109 - Magnadyne Radio; Torino

• Shape
• Tablemodel, low profile (big size).

• Notes
• Gamme d'onda: 2 medie e 2 corte.
  Wave bands: 2x BC, 2x SW.
  Parallelgerät zum Damaiter M 907.

• Source of data
• Guida Pratica Antique Radio IV (2001)

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 128)

• Literature/Schematics (2)
• Il Radio Libro (E.D. Ravalico) Edizioni Hoepli (13° edizione, 1952)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
