• Country
• Italy

• Manufacturer / Brand
• Magnadyne Radio; Torino

• Year
• 1950/1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 138575

• Number of Tubes
• 6

• Valves / Tubes
• 6TE8 6SK7 6SQ7 6V6 6E5 5Y3

• Main principle
• Superheterodyne (common); ZF/IF 471 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 155; 175; 235 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 23 cm = 9.1 inch

• Material
• Wooden case

• from Radiomuseum.org

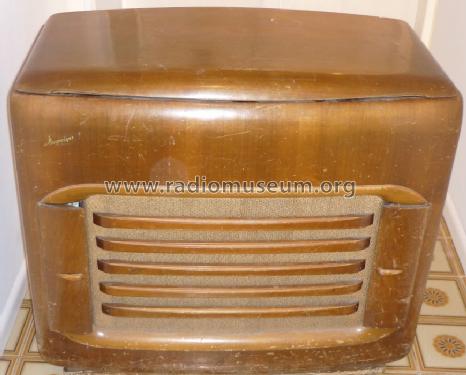

• Model: S175F - Magnadyne Radio; Torino

• Shape
• Console: Chairside Radio.

• Dimensions (WHD)
• 900 x 800 x 470 mm / 35.4 x 31.5 x 18.5 inch

• Notes
• Versione radiogrammofono console del mod. S175.

• Source of data
• Guida Pratica Antique Radio IV (2001)

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
