• Country
• Italy

• Manufacturer / Brand
• Magnadyne Radio; Torino

• Year
• 1951 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 123754

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6TE8GT 6SK7GT 6SQ7GT 6V6GT 6E5GT 5Y3GR

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Presumably Dynamic Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

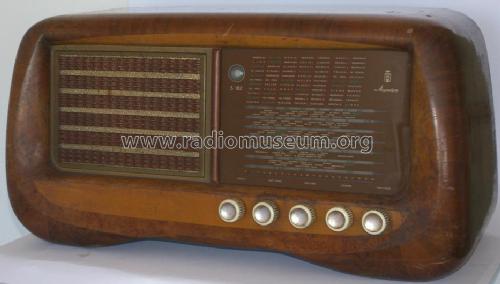

• Model: S182 - Magnadyne Radio; Torino

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 670 x 330 x 240 mm / 26.4 x 13 x 9.4 inch

• Mentioned in
• -- Collector info (Sammler)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
