- Country
- Italy
- Manufacturer / Brand
- Magnadyne Radio; Torino
- Year
- 1950 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 343568
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Conflicting model year with tube data.
- The model date contradicts tube dates. [ ECH81 (1952)]
- Main principle
- Superheterodyne (common); ZF/IF 471 kHz
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 140; 160; 175; 230 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: S97 - Magnadyne Radio; Torino
- Shape
- Tablemodel, low profile (big size).
- Notes
-
Gamme d'onda: OM 1 da 200 a 325 m - OM 2 da 350 a 550 m - OC 1 da 16 a 25 m - OC 2 da 27 a 50 m.
- Mentioned in

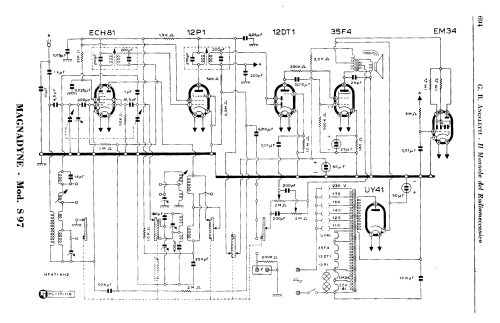

- -- Schematic
- Author
- Model page created by Aldo Andreani. See "Data change" for further contributors.
