• Country
• Italy

• Manufacturer / Brand
• Magnadyne Radio; Torino

• Year
• 1948 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 88953

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH4 6K7 6Q7 EL3 5Y3

• Main principle
• Superheterodyne (common); ZF/IF 471,5 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 155; 175; 235 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

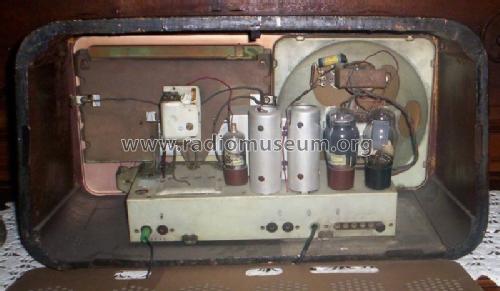

• Model: SV37 - Magnadyne Radio; Torino

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 570 x 300 x 230 inch / 14478 x 7620 x 5842 mm

• Notes
• Gamme d'onda: 2 OM, corte e cortissime.
  Wave bands: 2 BC, 2 SW. Esiste variante con valvole: 6TE8 6K7 6Q7 6V6 5Y3

• Mentioned in
• Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 120)

• Literature/Schematics (1)
• Riparazioni - Scuola Radio Elettra (pag. M12)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
