• Country
• Italy

• Manufacturer / Brand
• Magnadyne Radio; Torino

• Year
• 1940–1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 96263

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• WE20 or 6A8G 6K7G 6Q7G 6V6G WE12 or EM4 or 6E5 80

• Main principle
• Superheterodyne (common); ZF/IF 471,5 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 155; 175; 230 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 19 cm = 7.5 inch

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

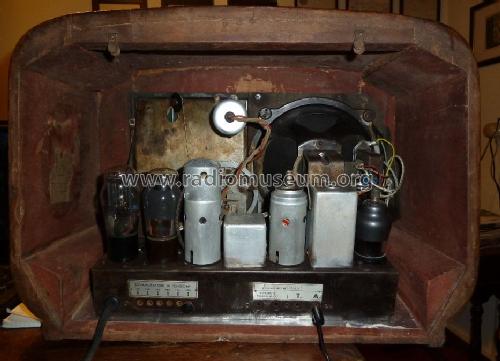

• Model: SV59 - Magnadyne Radio; Torino

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 490 x 350 x 260 mm / 19.3 x 13.8 x 10.2 inch

• Notes
• Serie Transcontinentale. Gamme d'onda = 2x OM, 2x OC. Stesso chassis Magnadyne SV48.
  Wave bands: 2x BC, 2x SW.

• Source of data
• Guida Pratica Antique Radio II (2000)

• Mentioned in
• Guida Pratica Antique Radio III (2000)

• Literature/Schematics (1)
• Il Radio Libro, (Ravalico) 8.Ed.
