• Country
• Italy

• Manufacturer / Brand
• Magnadyne Radio; Torino

• Year
• 1949 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 98352

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes

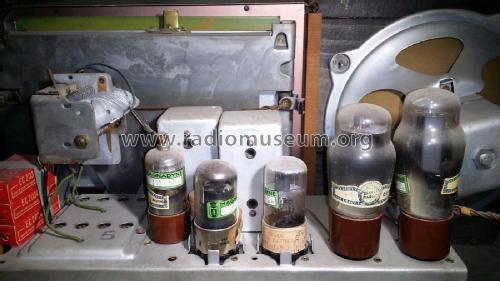

• 6TE8 6SK7 6SQ7 6V6 5Y3

• Main principle
• Superheterodyne (common); ZF/IF 471,5 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 155; 175; 235 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

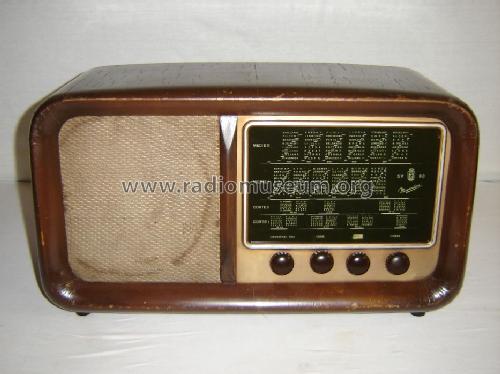

• Model: SV60 - Magnadyne Radio; Torino

• Shape
• Tablemodel, low profile (big size).

• Notes

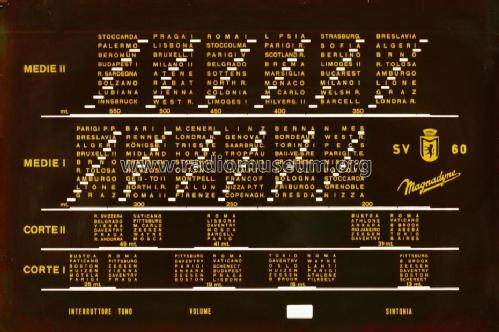

• Gamma onde medie divisa.
  Wave bands: 2x BC, 2x SW.
  MF=471,5 KHz

• Literature/Schematics (1)
• Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 123)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
