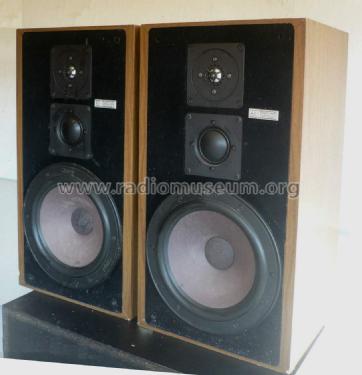

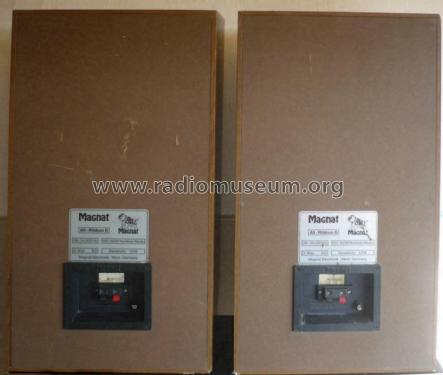

All-Ribbon 6
Magnat; Pulheim
- Country
- Germany
- Manufacturer / Brand
- Magnat; Pulheim
- Year
- 1984–1986
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 146847

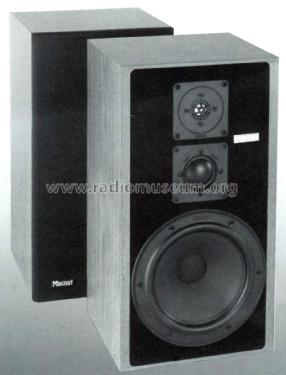

Q: Magnat, Produkt-Katalog '84
Q: Magnat, Produkt-Katalog '84
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: All-Ribbon 6 - Magnat; Pulheim
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 320 x 510 x 285 mm / 12.6 x 20.1 x 11.2 inch
- Notes
-
Bauart: 3-Weg, Bassreflex, Chassis: Tieftöner: 250 mm Konus, Mitteltöner: 50 mm Kalotte, Hochtöner: 25 mm Softmetall-Kalotte ( + Fuse 1 A), Belastbarkeit (Nenn/Musik): 100/150 Watt, Frequenzgang: 28 - 34.000 Hz, Trennfrequenzen: 600/2500 Hz, Impedanz: 8 Ohm
Aber trotz Namens kein "Ribbon" (Bändchen).
- Net weight (2.2 lb = 1 kg)
- 15 kg / 33 lb 0.6 oz (33.04 lb)
- Price in first year of sale
- 1,300.00 DM
- Author
- Model page created by Daniel Doll. See "Data change" for further contributors.
