- Country
- United States of America (USA)
- Manufacturer / Brand
- Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
- Year
- 1949 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 333609
- Number of Tubes
- 9
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 11.5 inch = 29.2 cm
- Material
- Wooden case
- from Radiomuseum.org

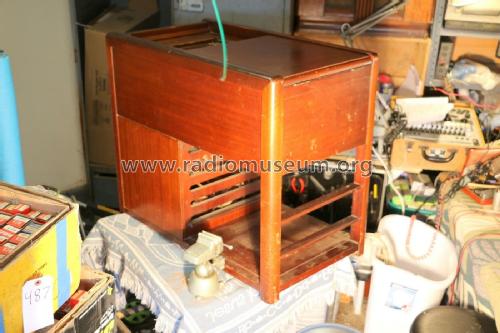

- Model: 135B Ch= CR-199D - Magnavox Co., Commercial
- Shape
- Console: Chairside Radio.
- Notes
-
CR-199D chassis is a production variant of Magnavox CR-199. The schematic is likely the same except for one or two component value changes. Receives the AM broadcast band and shortwave from 6.0 - 18 MHz.
- Literature/Schematics (1)
- Rider's Perpetual, Volume 16 = covering late 1946 to early 1947
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Volume 7 Folder 4911-13 05/1949)
- Author
- Model page created by Rodney Boleyn. See "Data change" for further contributors.
