- Country
- United States of America (USA)
- Manufacturer / Brand
- Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
- Year
- 1968 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 339229

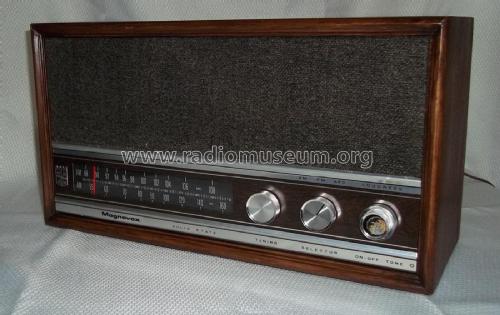

Front View

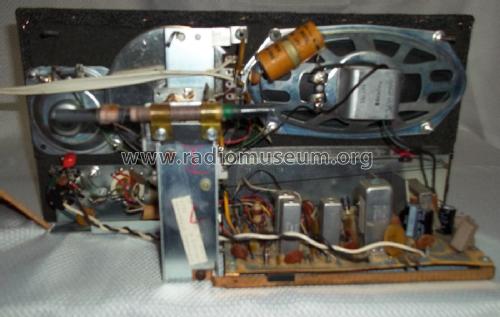

Chassis out of the cabinet

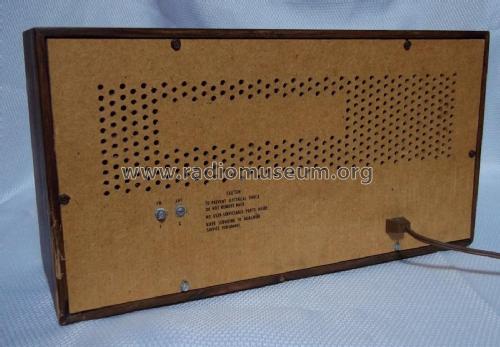

View of the back

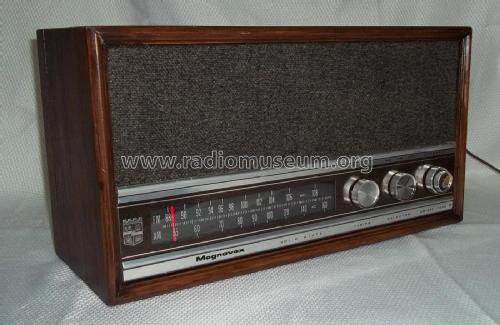

View of the front

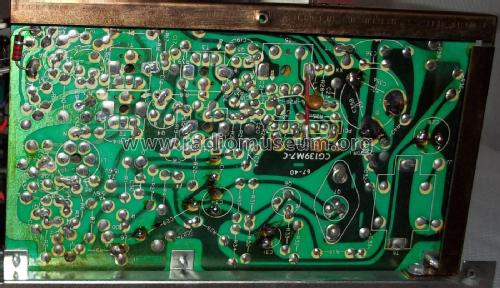

PCB board bottom
- Number of Transistors
- 10
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Power out
- 1 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 1FM56NWAL Ch= 703168 - Magnavox Co., Commercial
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 410 x 215 x 155 mm / 16.1 x 8.5 x 6.1 inch
- Notes
-
There are two speakers used in this radio. One is a 4x6" speaker for low to midrange audio and a 3" speaker used as a tweater.
- Net weight (2.2 lb = 1 kg)
- 5 kg / 11 lb 0.2 oz (11.013 lb)
- Author
- Model page created by Lester Troeckler. See "Data change" for further contributors.
