- Country
- United States of America (USA)
- Manufacturer / Brand
- Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
- Year
- 1959 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 334595
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 0
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110 - 125 Volt
- Power out
- 11 W (undistorted)
- Material
- Metal case
- from Radiomuseum.org
- Model: 636182-2 Amp 597 00 - Magnavox Co., Commercial
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 12 x 5 x 4 inch / 305 x 127 x 102 mm
- Notes
-

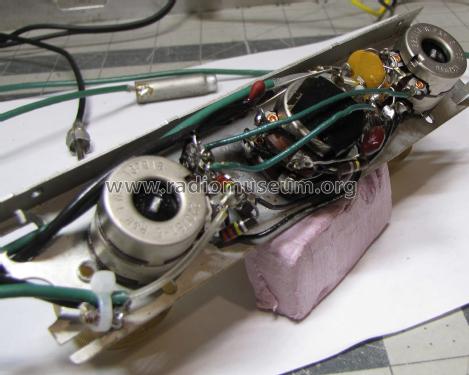

This is from an unknown Magnavox console. It is similar to another amp found in a 1ST226 K console, AMP 196 00. They look identical except this one is for a record changer only. It doesn't have the tuner option. This is the chassis only, which includes the Volume and tone control module.
- Author
- Model page created by Andre Sourdiffe. See "Data change" for further contributors.
