• Country
• United States of America (USA)

• Manufacturer / Brand
• Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN

• Year
• 1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 187989

• Number of Tubes
• 7

• Valves / Tubes
• 12DT8 12BE6 12BZ6 12BA6 12AL5 12AV6 50EH5

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)     7 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• AC/DC-set / 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 65-02-00 - Magnavox Co., Commercial

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 600 x 250 x 195 mm / 23.6 x 9.8 x 7.7 inch

• Notes

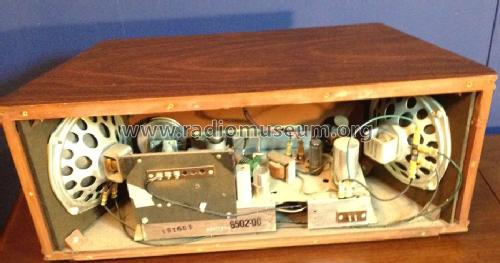

• Chassis mounted selenium rectifier, front panel tuning meter,
  case is trapezoid shape with 40cm front width and 60cm rear width.

• Source of data
• - - Data from my own collection

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Photofact Folder, Howard W. SAMS (Date 12-62, Set 610, Folder 8))

• Author
• Model page created by Frank Richards. See "Data change" for further contributors.
