• Year
  • 1942 ?
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 46287

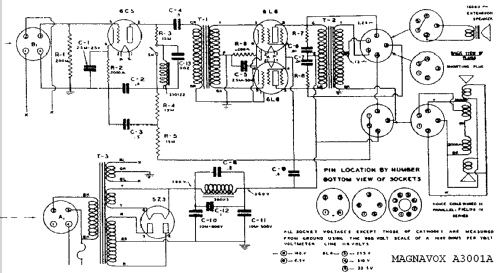

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Details
  • Record Player (perh.Changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 117 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Power out
  • 25 W (unknown quality)
  • from Radiomuseum.org
  • Model: A-3001A - Magnavox Co., Commercial
  • Notes
  • Push-pull audio amplifier, three speakers.
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 14 = 1944 = before 1943
  • Mentioned in
  • Rider's 14-9, 14-10, 14-13
