Pocket Mate 6 Transistor AM-22 (AMO22 AM022)

• Country
• United States of America (USA)

• Manufacturer / Brand
• Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN

• Year
• 1960 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 107657

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2S160 ST28C ST28C ST332 ST332 ST332 SD46

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm

• Power out
• 0.12 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Pocket Mate 6 Transistor AM-22 - Magnavox Co., Commercial

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 105 x 67 x 27 mm / 4.1 x 2.6 x 1.1 inch

• Notes

• Magnavox Pocket Mate AM-22 is a battery operated 6 Transistor portable AM receiver.
  Tuning Range: 535-1605 kHz
  Earphone jack.

  An alternative transistor set is: 2N252, 2N308, 2N398, 2N77, 2N77 and 2N77. The last two transistors are a matched pair. Alternative diode is 1N60.

  The cabinet is available in the colours red and black.

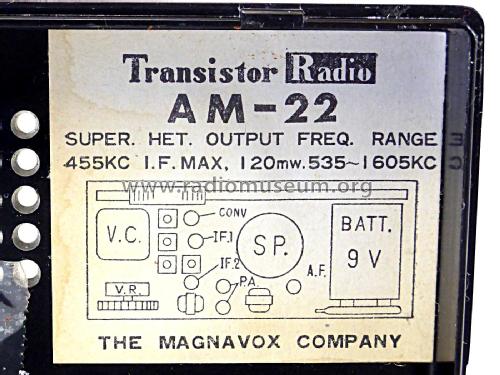

  The model number AMO22 (or AM022) is found on the inside, next to a regular AM-22 type sticker.

  Made in Japan

• Literature/Schematics (1)
• Photofact TSM Transistor Radio Series SAMS (TSM-11 (April, 1962))

• Literature/Schematics (2)
• Collector's Guide To TrR1 Bunis trans.94 (Model info on page 150)

• Literature/Schematics (3)
• Transistor Radios (Model info and image on page 62)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
