- Country
- United States of America (USA)
- Manufacturer / Brand
- Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
- Year
- 1952 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 46308

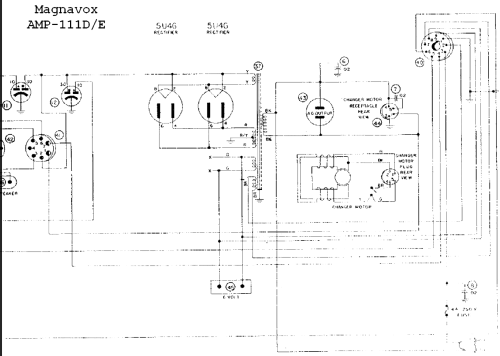

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 45 W (unknown quality)
- from Radiomuseum.org
- Model: AMP-111E - Magnavox Co., Commercial
- Notes
- Push-pull audio amplifier using 2 x 2 6L6 tubes in parallel. Three speakers, tweeter is PM type.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 18 = 1949 and before
- Mentioned in
- Rider's 18-4, 18-5, 18-6, 18-7, Changes 20-5
