• Country
• United States of America (USA)

• Manufacturer / Brand
• Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN

• Year
• 1957 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 271669

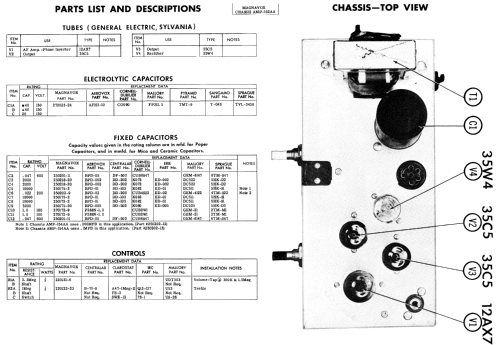

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 12AX7 35C5 35C5 35W4

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 50-60Hz, 110-120 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Metal case

• from Radiomuseum.org
• Model: Ch= AMP152AA - Magnavox Co., Commercial

• Shape
• Chassis only or for «building in»

• Notes

• The Magnavox AMP152AA is an AC operated 4 tube Audio Amplifier chassis.  This appears to be an audio chassis that was used in mono record players.  Has push-pull output stage.  SAMS Photofact shows output connected to 2 speakers, Qty(1) PM 6"speaker and Qty(1) PM 4" speaker.

• Mentioned in
• Photofact Folder, Howard W. SAMS (Set 351, Folder 19, Date 3-57)

• Author
• Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
