• Country
• United States of America (USA)

• Manufacturer / Brand
• Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN

• Year
• 1959 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 158988

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 7025 12AX7 12AX7 6V6GT 6V6GT 6V6GT 6V6GT 5U4GB

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• 6 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: AMP-185AA - Magnavox Co., Commercial

• Shape
• Console with any shape - in general

• Notes

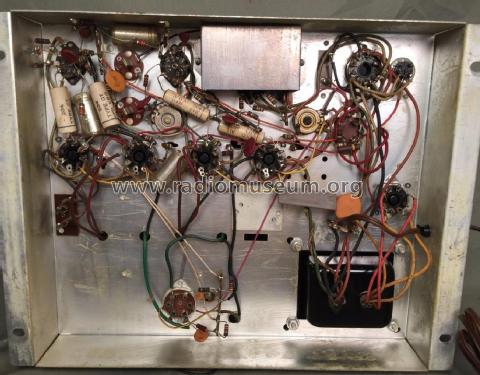

• The Magnavox AMP-185AA is an AC operated 8 Tube Stereo Amplifier.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 7-59, Set 449, Folder 13)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
