• Country
• United States of America (USA)

• Manufacturer / Brand
• Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN

• Year
• 1960 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 107693

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• HJ70 2N218 2N218 2N215 2N215 HJ34 HJ34

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Dry Batteries / D: 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

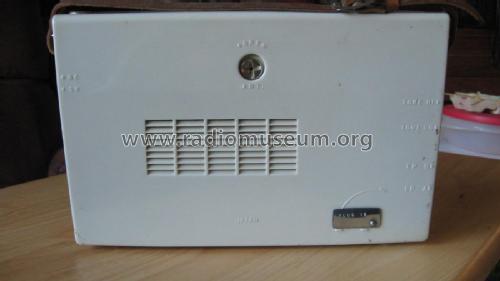

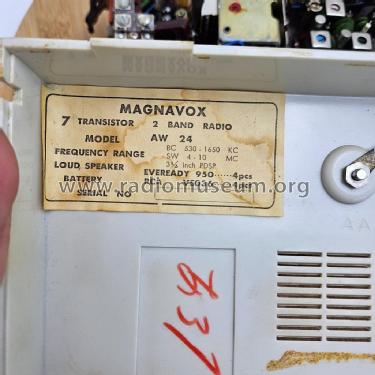

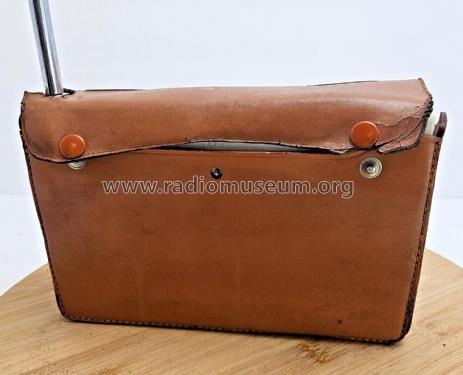

• Model: All Wave Super Het. Transistor Seven AW-24 - Magnavox Co., Commercial

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Notes

• Made in Japan

• Mentioned in
• Collector's Guide To TrR1 Bunis trans.94 (1996, page 152)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 511 folder 8 date 12-60)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
