- Country
- United States of America (USA)
- Manufacturer / Brand
- Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
- Year
- 1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 155667

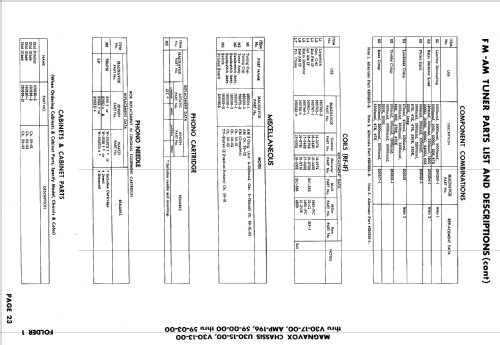

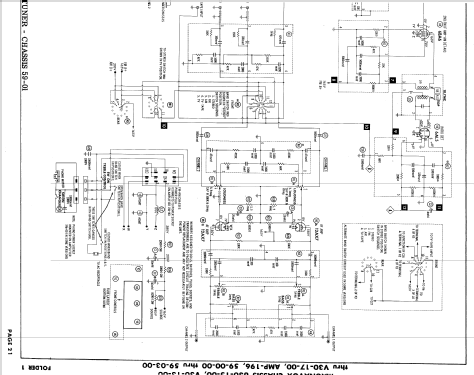

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Material
- Metal case
- from Radiomuseum.org
- Model: CH=59-00, 59-01 - Magnavox Co., Commercial
- Shape
- Chassis only or for «building in»
- Notes
- The Magnavox Chassis 59-00 and 59-01 AM-FM-Tuner are preferably for installation in large music boxes with the TV chassis U30-15-00, V30-13-00 thrue V30-17-00 and the Amplifier Chassis AMP-196-00, Power Tuning Unit and Remote Contrrol 700781 and 800782.
Complete service documents see chassis U30-15-00, V30-13-00.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 9-59, Set 454, Folder 1)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
- Other Models
-
Here you find 1080 models, 498 with images and 831 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
