- Country
- United States of America (USA)
- Manufacturer / Brand
- Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
- Year
- 1959
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 164936
Photofact Folder, Howard W. SAMS
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Ch= AMP-175EE - Magnavox Co., Commercial
- Shape

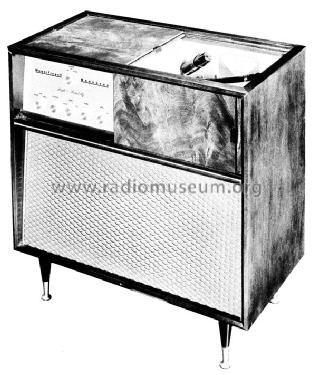

- Console, Lowboy (legs < 50 %).
- Notes
- The Magnavox Chassis AMP-175EE is an AC operated 7 Tube Phono Amplifier with Automatic Record Changer.
- Literature/Schematics (1)

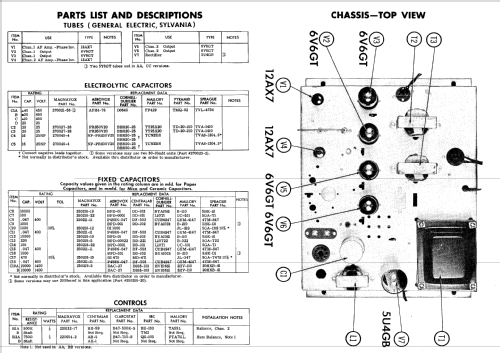

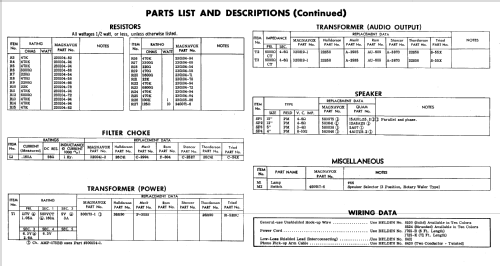

- Photofact Folder, Howard W. SAMS (Date 7-59, Set 448, Folder 9)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
