- Country
- United States of America (USA)
- Manufacturer / Brand
- Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
- Year
- 1956
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 140917

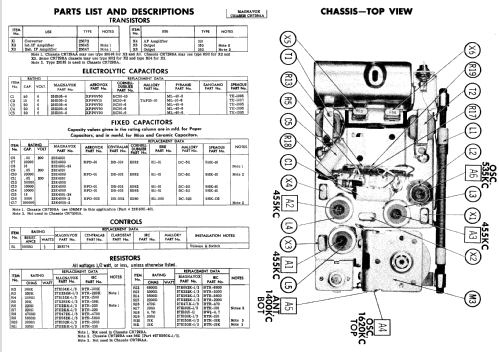

Sams Photofact Folders reference picture.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 4 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.75 inch = 7 cm
- from Radiomuseum.org
- Model: Ch= CR729AA - Magnavox Co., Commercial
- Shape
- Chassis only or for «building in»
- Mentioned in
- Photofact Folder, Howard W. SAMS (Set 388 production changes bulletin 201 dated 2-58)
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 1-57, Set 342, Folder 9)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
