- Country
- United States of America (USA)
- Manufacturer / Brand
- Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
- Year
- 1958 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 183921

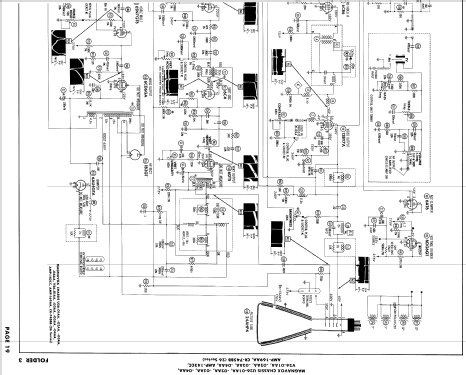

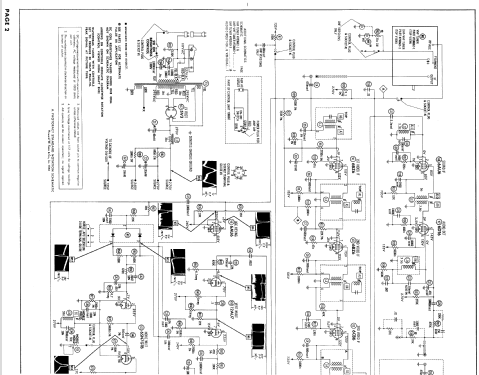

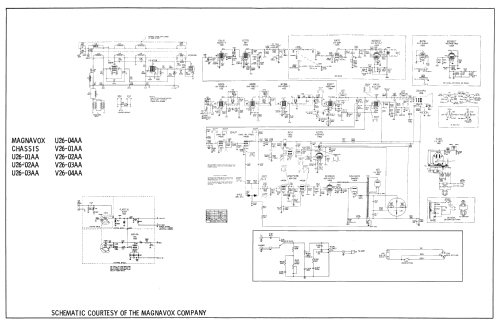

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 21
- Valves / Tubes
- 6AF4A 6BN4 6CG8 6AU6 6DT6 6AT6 6DG6GT 6BZ6 6BZ6 6CB6 12BY7 6AU6 12AU7 6C4 6DT5 6SN7GTB 6CD6GA 6AU4GTA 1B3 5U4G 24AHP4
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Chassis Ch= U26-01AA - Magnavox Co., Commercial
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
Magnavox Chassis U26-01AA is a 24" b/w TV with US standard VHF tuner channels 2 thru 13, and 14 thru 83 UHF. Equipped with VHF- Tuner 700662-1, UHF- Tuner 700530-3 and picture tube 24AHP4.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 6-58, Set 404, Folder 3)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 391 Folder 16-S dated 3-58)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
