- Country
- United States of America (USA)
- Manufacturer / Brand
- Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
- Year
- 1958 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 177323

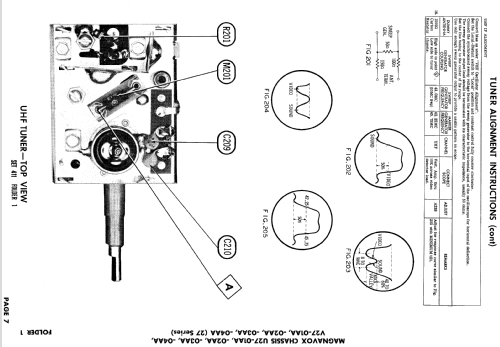

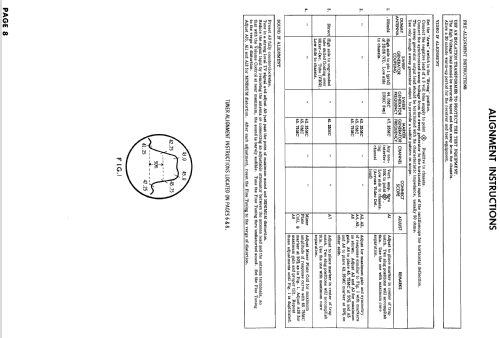

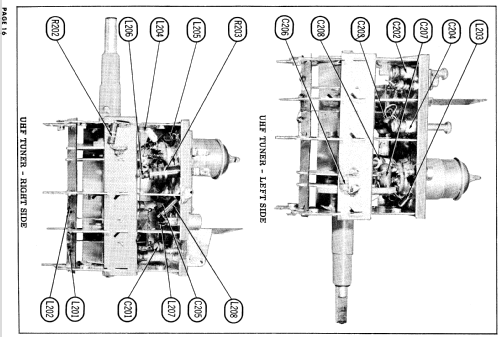

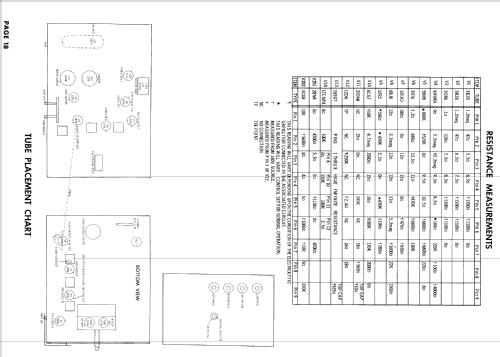

Sams Photofact Folders reference picture.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 16
- Valves / Tubes
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: Ch= U27-01AA - Magnavox Co., Commercial
- Shape
- Tablemodel, with any shape - general.
- Notes
- Television Receiver Chassis, Picture tube: 17CNP4, Prefix "U" stands for factory equipped with continuous UHF tuner, tube quantity UHF: 16
Tuning Range: TV - Channels 2 thru 13, 14 thru 84 UHF.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 9-58, Set 411, Folder 1)
