- Country
- United States of America (USA)
- Manufacturer / Brand
- Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
- Year
- 1958 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 183379

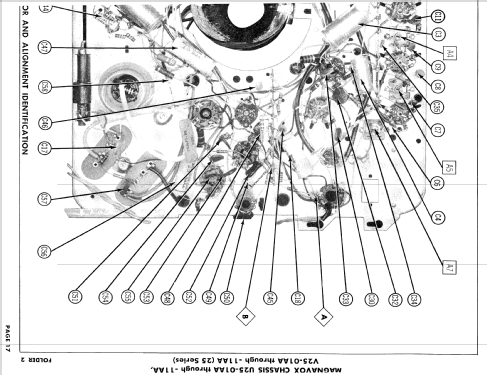

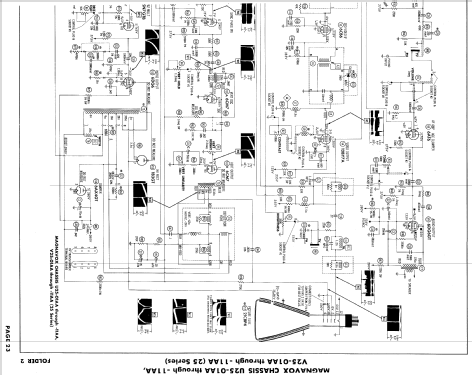

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 19
- Valves / Tubes
- 6BN4 6CG8A 6AU6 6DT6 6AT6 6DG6GT 6BZ6 6BZ6 6CB6 12BY7A 6AU6 12AU7 6CM7 6SN7GTB 6DQ6 1B3GT 6AX4GT 5U4GB 21CBP4
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Chassis Ch= V25-08AA - Magnavox Co., Commercial
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
Magnavox Chassis V25-08AA is a 21" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with VHF tuner 700624 and picture tube 21CBP4.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 6-58, Set 402, Folder 2)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 383 Folder 14-S dated 1-58)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
