- Country
- United States of America (USA)
- Manufacturer / Brand
- Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
- Year
- 1959
- Category
- Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
- Radiomuseum.org ID
- 187922
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 20
- Valves / Tubes
- 21CEP4
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Metal case
- from Radiomuseum.org
- Model: Ch= V30-01AA - Magnavox Co., Commercial
- Shape
- Chassis only or for «building in»
- Notes
- 21" b/w TV with US standard VHF Tuner Channels 2 thru 13. Some Chassis with Picture Tube 24AHP4. Available is a Remote Control 700742-1, 700781 or 700782.
- Literature/Schematics (1)

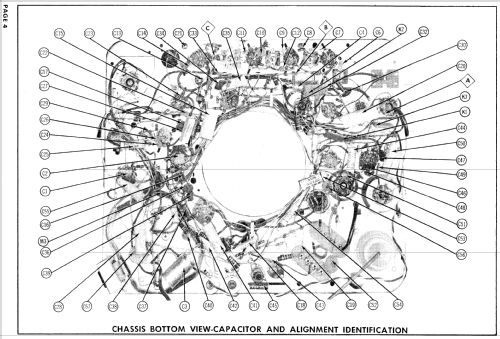

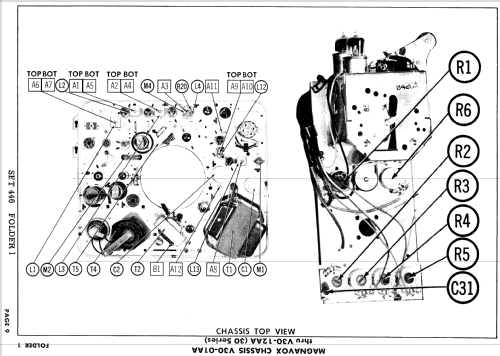

- Photofact Folder, Howard W. SAMS (Date 6-59, Set 446, Folder 1)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
