• Country
• United States of America (USA)

• Manufacturer / Brand
• Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN

• Year
• 1959

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 155665

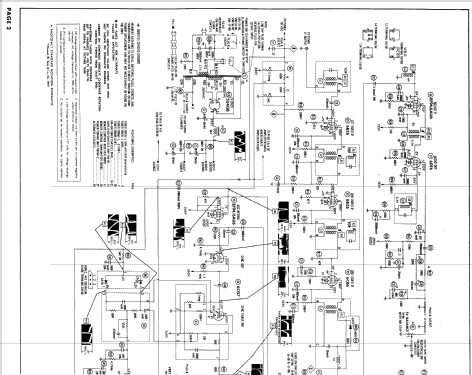

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Material
• Metal case

• from Radiomuseum.org
• Model: Ch= V30-14-00, V30-15-00 - Magnavox Co., Commercial

• Shape
• Chassis only or for «building in»

• Notes
• 24" Television Receiver Chassis with Remote Control, Picture tube: 24AHP4, Prefix "U" stands for factory equipped with continuous UHF tuner, tube quantity UHF: 19
  Tuning Range: TV - Channels 2 thru 13, 14 thru 84 UHF.
  Complete service documents see chassis U30-15-00, V30-13-00.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 9-59, Set 454, Folder 1)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
