- Country
- United States of America (USA)
- Manufacturer / Brand
- Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
- Year
- 1962
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 136162
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- from Radiomuseum.org
- Model: Ch= 71-01-00 - Magnavox Co., Commercial
- Shape
- Chassis only or for «building in»
- Notes
- Sams photofact date 1-63 set 615 folder 8 features the Magnavox models 71-01-00 and 71-02-00 as the same schematic. Chassis 71-02-00 uses a electric clock.
- Literature/Schematics (1)

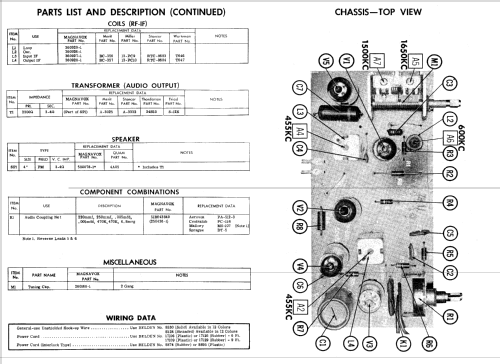

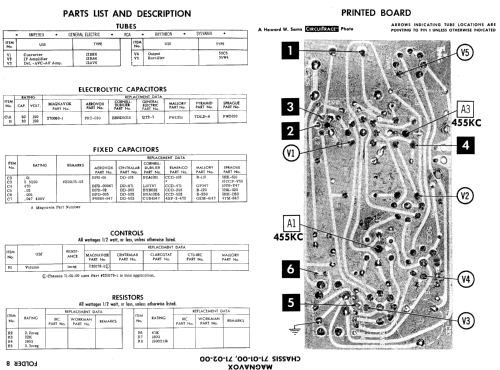

- Photofact Folder, Howard W. SAMS (Set 615 folder 8 date 1-63)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
