- Country
- United States of America (USA)
- Manufacturer / Brand
- Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 334237

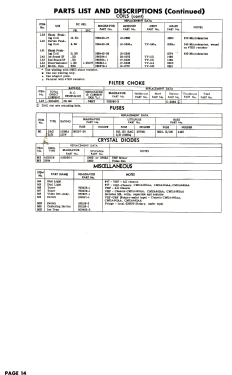

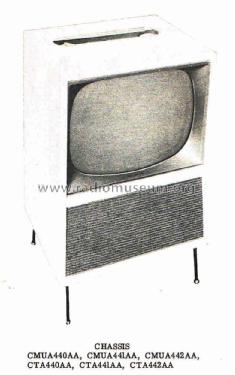

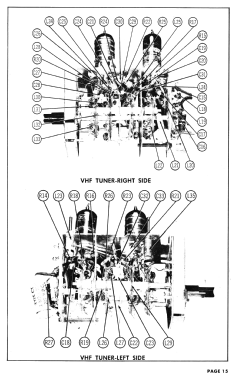

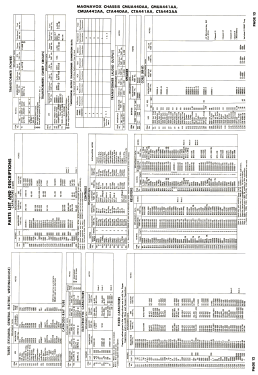

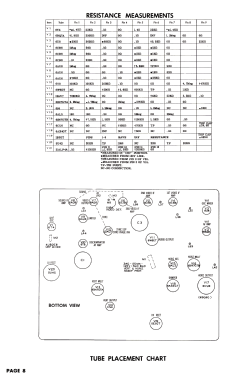

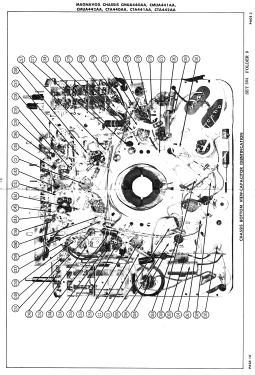

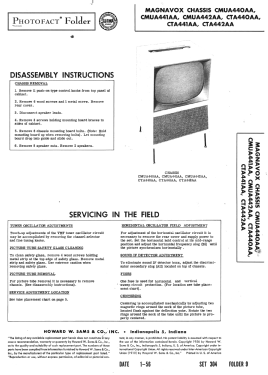

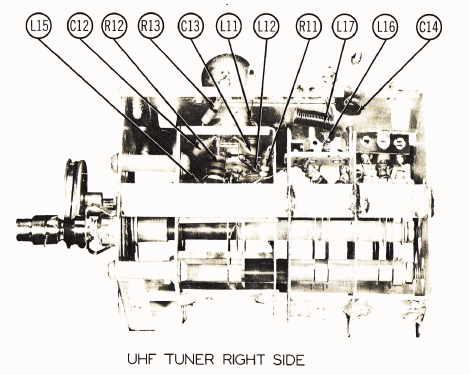

Picture from service manual.

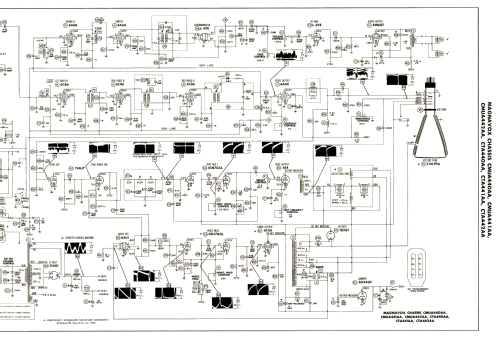

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 20
- Valves / Tubes
- 6BQ7A 6U8 6CB6 6CB6 6CB6 6AU6 6AU6 6AU6 6T8 6W6GT 12AU7 6SN7GTA 6S4 6AL5 6SN7GTB 6CU6 6AX4GT 1B3GT 5U4G 21ALP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Chassis CTA440AA - Magnavox Co., Commercial
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
Magnavox Chassis CTA440AA is a 21” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with VHF tuner 700458-1 and picture tube 21ALP4A.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 304 Folder 9 dated 1-56)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
- Other Models
-
Here you find 1080 models, 498 with images and 831 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
