• Country
• United States of America (USA)

• Manufacturer / Brand
• Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN

• Year
• 1956 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 268138

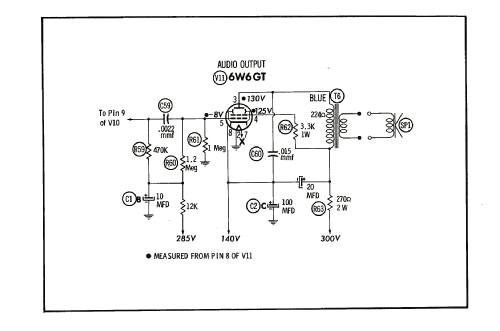

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 105-120 Volt

• from Radiomuseum.org
• Model: Ch= CMUA436BB 250Series - Magnavox Co., Commercial

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 331 Folder 1 dated 9-56)

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 346 Folder 1 dated 2-57)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
