Ch= CMUA475CC 600 series

• Country
• United States of America (USA)

• Manufacturer / Brand
• Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN

• Year
• 1956 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 263583

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 20

• Valves / Tubes
• 6BC8 6U8 6BZ6 6BZ6 6CB6 6AU6 6AU6 6AU6 6T8 6W6GT 12AU7 6SN7GTB 6S4A 6AL5 6SN7GTB 6DQ6 6AX4GT 1B3GT 5U4G 21ATP4

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Material
• Wooden case

• from Radiomuseum.org
• Model: Ch= CMUA475CC 600 series - Magnavox Co., Commercial

• Shape
• Console with any shape - in general

• Notes

• The Magnavox Chassis CMUA475BB 600 series is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13.This chassis is equipped with a picture tube 21ATP4.

• Literature/Schematics (1)

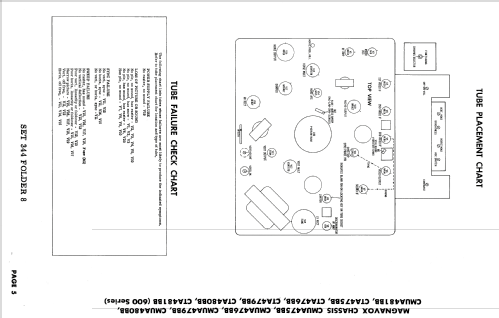

• Photofact Folder, Howard W. SAMS (Set 344 Folder 8 date 1 - 57)

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 325 Folder 18-S dated 1956)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
