Ch= CMUA476BB 600 series
Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
- Country
- United States of America (USA)
- Manufacturer / Brand
- Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 263738

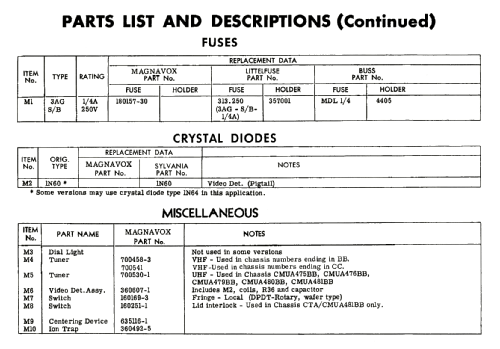

Picture from service manual

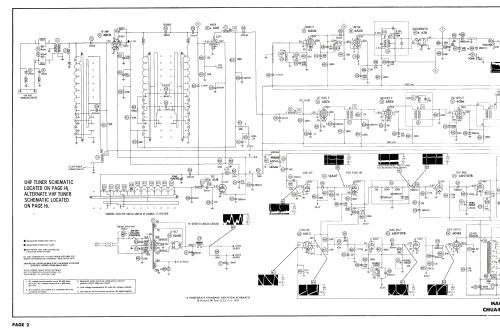

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 20
- Valves / Tubes
- 6BC8 6U8 6BZ6 6BZ6 6CB6 6AU6 6AU6 6AU6 6T8 6W6GT 12AU7 6SN7GTB 6S4A 6AL5 6SN7GTB 6DQ6 6AX4GT 1B3GT 5U4G 21ATP4
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Material
- Wooden case
- from Radiomuseum.org
- Model: Ch= CMUA476BB 600 series - Magnavox Co., Commercial
- Shape
- Console with any shape - in general
- Notes
-
The Magnavox Chassis CMUA476BB 600 series is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13,14 thru 83 UHF.This chassis is equipped with a picture tube 21ATP4.
