• Country
• United States of America (USA)

• Manufacturer / Brand
• Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN

• Year
• 1956 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 272293

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 21

• Valves / Tubes
• 6BQ7A 6U8 6T4 6CB6 6CB6 6CB6 6AW8 6AN8 6AU6 6AU6 6T8 6W6GT 6SN7GTB 6S4 6AL5 6SN7GTB 6CU6 6AX4GT 1B3GT 5U4G 21ATP4

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Ch= CMUE472AA 650 Series - Magnavox Co., Commercial

• Shape
• Console, Highboy (legs > 50 %).

• Notes

• The Magnavox chassis CMUE472AA 650 series is a 21" b/w TV with US standard VHF tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with VHF-tuner 700458-2, UHF tuner 700459-1 and picture tube 21ATP4.

• Literature/Schematics (1)

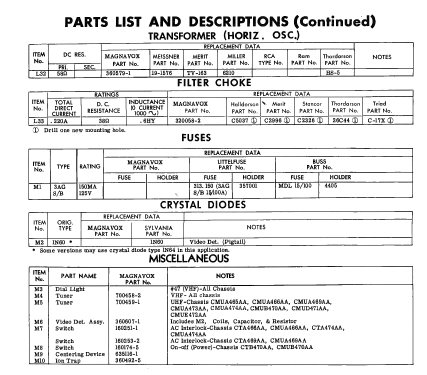

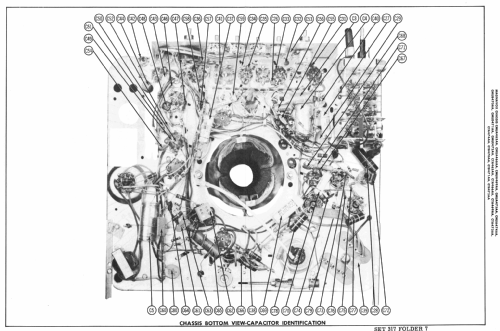

• Photofact Folder, Howard W. SAMS (Set 317 Folder 7 dated 56)

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 329 Folder 1 dated 9-56)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
