CR-188

• Country
• United States of America (USA)

• Manufacturer / Brand
• Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN

• Year
• 1947 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 46386

• Picture

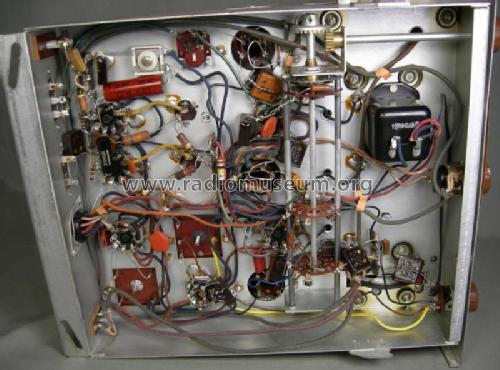

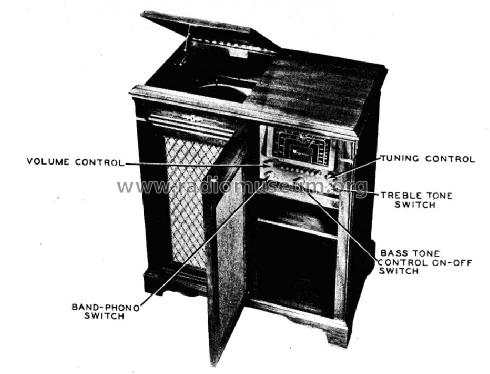

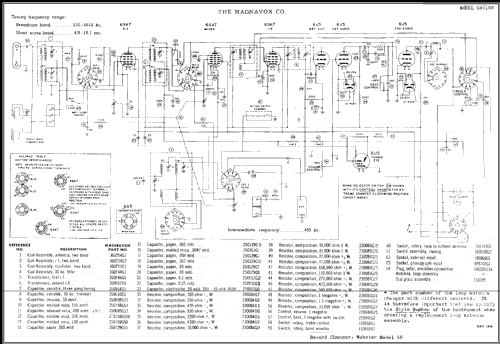

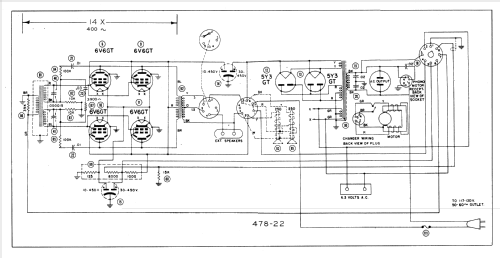

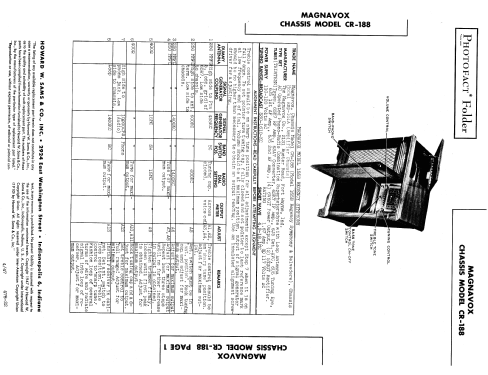

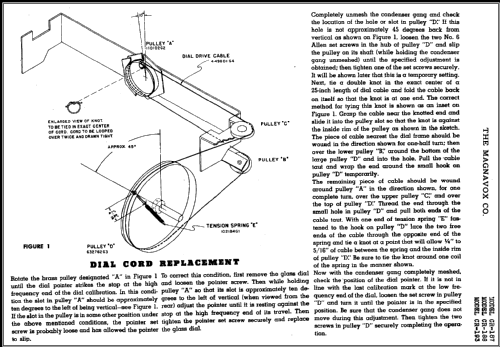

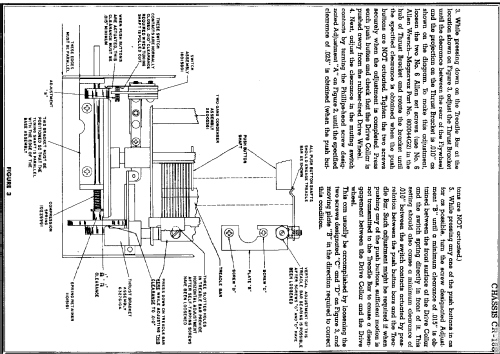

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 13

• Valves / Tubes
• 6SK7 6SA7 6SK7 6J5 6U5 6J5 6J5 6V6GT 6V6GT 6V6GT 6V6GT 5Y3GT 5Y3GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC)

• from Radiomuseum.org
• Model: CR-188 - Magnavox Co., Commercial

• Shape
• Console with any shape - in general

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 15 = 1947 and before

• Other Models

• Here you find 1080 models, 498 with images and 831 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
