- Country
- United States of America (USA)
- Manufacturer / Brand
- Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
- Year
- 1949 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 46411

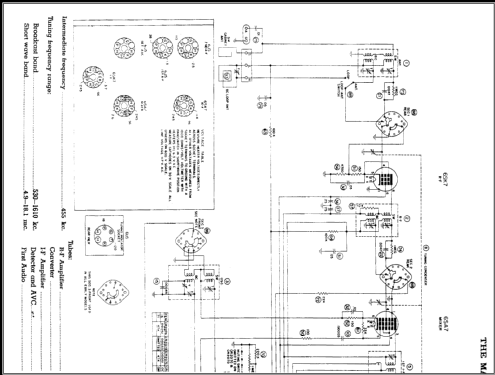

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Powered by external power supply or a main unit.
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: CR-207B - Magnavox Co., Commercial
- Shape
- Chassis only or for «building in»
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 17 = 1948 and before
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 41, Folder 12)
