- Country
- United States of America (USA)
- Manufacturer / Brand
- Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
- Year
- 1950 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 117609
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 11.5 inch = 29.2 cm
- Material
- Metal case
- from Radiomuseum.org
- Model: CR-200F - Magnavox Co., Commercial
- Shape
- Chassis only or for «building in»
- Circuit diagram reference
- Rider's Perpetual, Volume 18 = 1949 and before

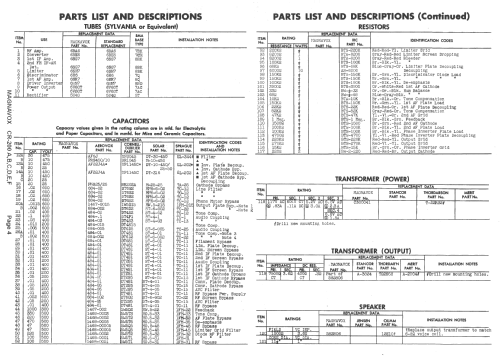

- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 44, Folder 9)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
